The GKM398 triaxial Vibration sensor is an independently developed by RUICOM Technology, applicable to vibration testing, impact testing, and other fields. This product employs an analog current output design, supports address code settings, and allows multiple sensors to be used in series over long distances, facilitating multi-point measurement and data analysis.
The GKM398 utilizes single-crystal silicon capacitive sensing technology. Its core components include a micromachined silicon chip, a low-power ASIC signal conditioning circuit, a microprocessor for storing compensation data, and an integrated temperature sensor. The product undergoes precise calibration and features low power consumption, stable structure, and reliable output. Its electronic system employs a solid-state power supply reset design and provides overcurrent protection to ensure safe operation.
This series of products, with its robust structural design, excellent power consumption control, and good deviation stability, meets the requirements for high-reliability measurements.
Technical Characteristics
❖ Analog current output interface;
❖ Vibration: 10~2000Hz, 10g;
❖ Shock: 100g@11ms, triaxial (half-sine wave);
❖ Excellent mechanical strength and long-term stability.
Application Field
❖ Flight data recording and analysis ❖ Structural fatigue monitoring and life prediction
❖ Bridge structural health monitoring ❖ Track vibration and roadbed stability monitoring
❖ Vehicle vibration testing and monitoring ❖ High-speed train operation status monitoring
❖ Wind turbine generator vibration monitoring ❖ Vibration fault early warning for large machinery
❖ Monitoring of heavy equipment such as road rollers
Performance Parameters
|
GKM398
|
Parameter
|
Unit
|
|
Measurement Range
|
±2
|
±4
|
±8
|
±10
|
±20
|
±40
|
g
|
|
Bias Calibration
|
<1
|
<1
|
<1
|
<1
|
<1
|
<1
|
mg
|
|
Measurement Axis
|
X,Y,Z
|
X,Y,Z
|
X,Y,Z
|
X,Y,Z
|
X,Y,Z
|
X,Y,Z
|
axis
|
|
Upward/Power-Off Repeatability
|
<2
|
<2
|
<2
|
<2
|
<2
|
<2
|
mg(max)
|
|
Sensitivity (±10%)
|
4
|
2
|
1
|
0.8
|
0.4
|
0.2
|
mA/g
|
|
Bias Temperature Coefficient
|
0.01
|
0.01
|
0.01
|
0.05
|
0.05
|
0.05
|
%/℃
|
|
Resolution/Threshold (@ 1Hz)
|
< 1
|
< 1
|
< 1
|
< 1
|
< 1
|
< 1
|
mg(max)
|
|
Nonlinearity
|
<1
|
<1
|
<1
|
<1
|
<1
|
<1
|
% FS(max)
|
|
Response Frequency
|
500
|
500
|
500
|
500
|
500
|
500
|
Hz
|
|
Bandwidth (3dB)
|
1000
|
1000
|
1000
|
1000
|
1000
|
1000
|
Hz
|
|
Cross-Axis Sensitivity
|
1
|
1
|
1
|
2
|
2
|
2
|
%
|
|
Transverse Vibration Sensitivity Ratio
|
1
|
1
|
2
|
5
|
5
|
5
|
%
|
|
Resonant Frequency
|
2.4
|
2.4
|
2.4
|
5.5
|
5.5
|
5.5
|
kHz
|
|
Noise Density
|
21
|
21
|
21
|
86.6
|
86.6
|
86.6
|
μg/√Hz
|
|
0g Output 12mA
|
<0.005
|
<0.005
|
<0.005
|
<0.003
|
<0.003
|
<0.003
|
mA
|
|
Output Current
|
4~20mA
|
|
Input (VDD_VSS)
|
9-36 VDC
|
|
Operating Current Consumption
|
<60mA @ 12 VDC
|
|
Protection Class
|
IP67
|
|
Material
|
Aluminum Alloy
|
|
Weight
|
Net Weight: ≤116g / Magnetic Base: ≤50g
|
|
Product Dimensions
|
Product Dimensions: L36×W32×H24mm
Magnetic Base Dimensions: L36×W32×H8.1mm
|
|
Note: Do not use beyond the specified range for extended periods.
|

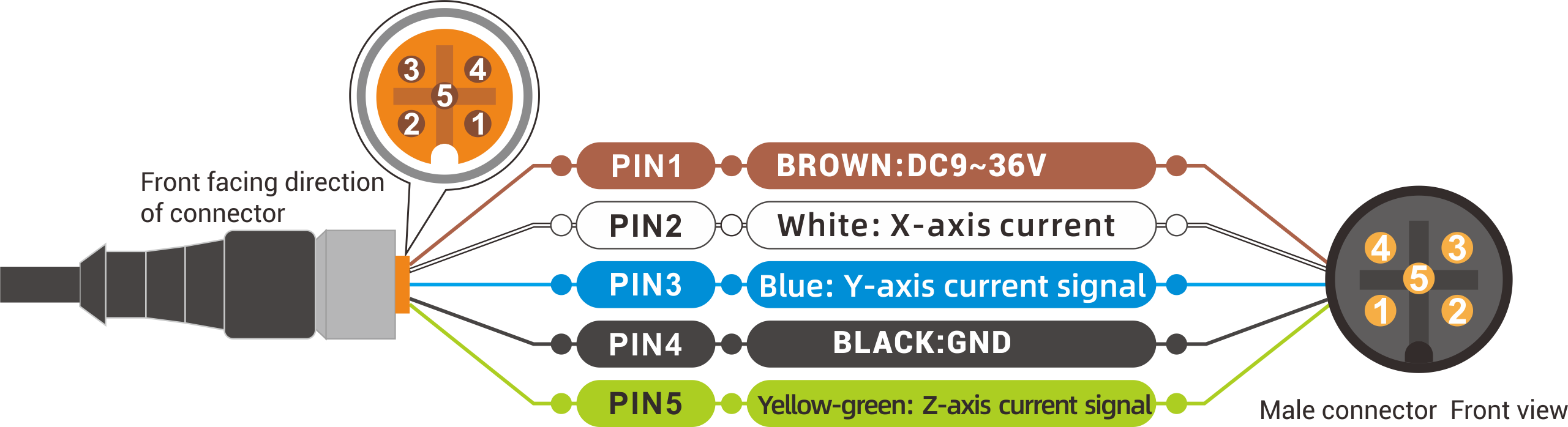

PIN Definition
|
PIN/Thread Color
|
Definition
|
|
PIN1/Brown
|
DC9 ~36V
|
|
PIN2/White
|
X-axis current signal
|
|
PIN3/Blue
|
Y-axis current signal
|
|
PIN4/Black
|
GND
|
|
PIN 5/Yellow-green
|
Z-axis current signal
|
Product Dimensions
Housing: L36×W32×H24mm
Installation Dimensions: L29×W25×H4mm
Mounting screws: 4 M4 screws
Installation Accessory Dimensions
Magnetic base plate dimensions: L36×W32×H8.1mm
Installation Dimensions: L29×W25×H11.6mm
Installation method: Magnetic adsorption base installation
