The HTS6 series is a high-precision single/dual-axis tilt sensor, employing a 4-20mA standard industrial current signal output and supporting long-distance signal transmission up to 2000 meters. Based on advanced MEMS manufacturing processes, this product utilizes precise temperature compensation and nonlinear correction technology to achieve a measurement accuracy of 0.005° within a small range (see product specifications for large range parameters).
This series of tilt sensors innovatively applies dynamic zero-point calibration technology, enabling rapid start-up. It features high resolution, excellent data stability, and strong resistance to mechanical shock and vibration. The product employs an anti-RF interference design and electromagnetic shielding circuitry, significantly improving the anti-interference performance of the output signal. Compared to similar products, it not only boasts superior performance parameters but also ensures long-term stable and reliable operation under harsh conditions through the use of high-quality components and protective designs, including an industrial-grade MCU, a ruggedized circuit board, imported connecting cables, and a wide-temperature-range metal shielded housing.
Technical Characteristics
❖ Measuring range ±1~±90° selectable;
❖ Small measuring range accuracy 0.005°;
❖ Resolution 0.001°;
❖ Output mode 4~20mA;
❖ Wide voltage input 11.5~36V;
❖ Wide operating temperature -40~+85℃.
Application Field
❖Engineering machinery platform leveling systems ❖Photovoltaic tracking bracket control systems
❖Aerospace attitude reference systems ❖Precision instrument leveling devices
Performance Parameters
|
HTS6
|
Condition
|
Parameter
|
|
Measurement Range
|
-
|
±10°
|
±30°
|
±60°
|
±90°
|
|
Measurement Axis
|
-
|
X / XY Axis
|
|
Zero Output
|
-
|
12mA
|
|
Resolution1)
|
-
|
0.001°
|
|
Accuracy
|
Maximum Absolute Error (MAE)2)
|
Room Temp
|
0.005°
|
0.01°
|
0.02°
|
0.03°
|
|
Root Mean Square Error(RMSE)3)
|
Room Temp
|
0.003°
|
0.003°
|
0.005°
|
0.008°
|
|
Zero Temp Coefficient4)
|
-40~85℃
|
0.0005°/℃
|
|
Sensitivity Temp Coefficient5)
|
-40~85℃
|
≤100ppm/℃
|
|
Power-On Startup Time
|
0.5S
|
|
Response Frequency
|
20Hz
|
|
Electromagnetic Compatibility
|
According to EN61000 and GBT17626
|
|
Insulation Resistance
|
≥100MΩ
|
|
Shock Resistance
|
100g@11ms, 3 Axial Direction (Half Sinusoid)
|
|
Vibration Resistance
|
10grms, 10~1000Hz
|
|
Protection Class
|
IP67
|
|
Cables
|
Standard 2m cable, wire diameter 6.8mm, wire weight＜155g
|
|
Weight
|
≤270g (excluding cable)
|
|
1) Resolution: The smallest identifiable angular change within the effective measurement range, reflecting its ability to monitor minute tilt fluctuations.
2) MAXE: refers to the biggest error of the product within the range and at multiple angle points.
3) RMSE: refers to the root mean square difference between the measured value and the actual angle of the product within the range and for multiple times (more than 16 times).
4) Zero Temp Drift Coefficient: the change rate of the indication value relative to normal temperature within the rated operating temperature range of the sensor at the zero degree.
5) Sensitivity Temp Drift Coefficient: The percentage change rate with temperature of the full-scale indication relative to the full-scale indication at room temperature of the sensor in its rated operating temperature range.
|
Electrical Parameters
|
Parameter
|
Condition
|
Min
|
Typical Value
|
Max
|
Unit
|
|
Supply voltage
|
Standard
|
11.5
|
12
|
24
|
36
|
V
|
|
Operating current
|
No load
|
|
40
|
|
mA
|
|
Output load
|
11.5~36V
|
Resistivity
|
0
|
240
|
320
|
Ω
|
|
14.5~36V
|
Resistivity
|
0
|
470
|
500
|
Ω
|
|
Operating temp
|
|
-40
|
|
85
|
℃
|
|
Storage temp
|
|
-40
|
|
85
|
℃
|

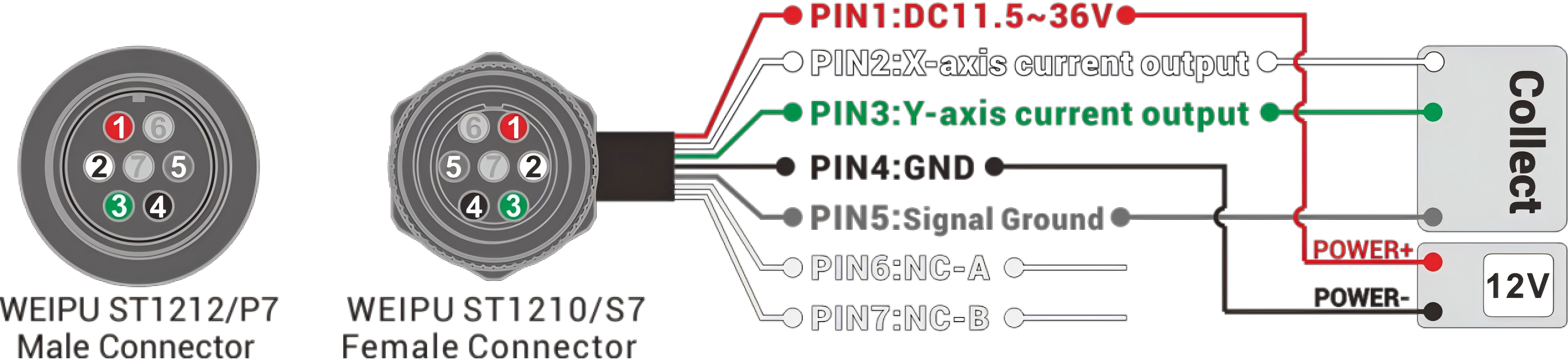

Interface Definition
|
PIN/Thread Color
|
Definition
|
Description
|
|
PIN1 / Red
|
DC11.5~36V
|
Power supply positive terminal
|
|
PIN2 / White
|
X_OUT
|
X-axis current output
|
|
PIN3 / Green
|
Y_OUT
|
Y-axis current output
|
|
PIN4 / Black
|
GND
|
Power supply negative terminal
|
|
PIN5 / Gray
|
signal ground
|
Signal ground
|
|
PIN6 / ----
|
NC
|
No connection
|
|
PIN7 / ----
|
NC
|
No connection
|
* Signal ground: The ground of the circuit that collects and measures the current output signal of the sensor.
Product Dimensions
Case dimensions: L90×W61.6×H34mm
Recommended screws: 3 M4 screws
