The NTS series tilt sensor, developed by Ruicom, is a small-sized MEMS single-axis tilt sensor. Its output current, after internal double linearity correction, exhibits excellent linear current output characteristics, primarily targeting applications with specific requirements for installation space and cost. This product integrates a tilt sensing unit based on microelectromechanical technology, is compact in size, supports long-distance signal transmission (up to 2000 meters), and has good resistance to electromagnetic interference and shock vibration, making it suitable for long-term operation in harsh industrial environments.
This product uses a non-contact measurement principle, providing real-time output of the current tilt angle. Installation is convenient, eliminating the need to locate two relatively changing surfaces for calibration. Typical applications include industrial automation control and platform attitude measurement. The product is primarily suitable for measuring static and slowly changing dynamic angles, maintaining stable operation even in industrial environments with strong electromagnetic interference.
Technical Characteristics
❖ Output: 4～20mA
❖ Measuring range: ±10～±90° selectable
❖ Accuracy: 0.1°
❖ Wide operating temperature range: -40～+85℃
❖ DC9～36V power supply
Application Field
❖ Angle control for various engineering machinery ❖ Four-wheel alignment and control for automobiles
❖ Chassis measurement for automobiles ❖ Leveling of medical beds
❖ Monitoring of gimbal operation ❖ Satellite antenna positioning
Performance Parameters
|
NTS
|
Condition
|
Parameter
|
Unit
|
|
Measurement Range
|
-
|
±30
|
±60
|
±90
|
±180
|
0~360
|
°
|
|
Measurement Axis
|
-
|
X Y
|
X Y
|
X Y
|
X
|
X
|
Axis
|
|
Zero Output
|
0° Output
|
12
|
12
|
12
|
12
|
12
|
mA
|
|
Resolution
|
-
|
0.02
|
0.03
|
0.05
|
0.08
|
0.08
|
°
|
|
Measurement Accuracy
|
@25℃
|
0.1
|
0.1
|
0.15
|
0.2
|
0.2
|
°
|
|
Long-Term Stability
|
-
|
<0.5
|
<0.5
|
<0.5
|
<0.5
|
<0.5
|
°
|
|
Zero Temperature Coefficient
|
-40～85℃
|
±0.02
|
±0.02
|
±0.02
|
±0.02
|
±0.02
|
°/℃
|
|
Sensitivity Temperature Coefficient
|
-40～85℃
|
≤150
|
≤150
|
≤150
|
≤150
|
≤150
|
ppm/℃
|
|
Power-On Startup Time
|
-
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
S
|
|
Response Time
|
-
|
0.02
|
0.02
|
0.02
|
0.02
|
0.02
|
s
|
|
Response Frequency
|
-
|
20
|
Hz
|
|
Electromagnetic Compatibility
|
Compliant with EN61000 and GBT17626
|
|
Insulation Resistance
|
≥100 megohms
|
|
Shock Resistance
|
100g@11ms, triaxial (half-sine wave)
|
|
Vibration Resistance
|
10grms,10～1000Hz
|
|
Waterproof Rating
|
IP67
|
|
Cable
|
Standard configuration: 2-meter shielded cable
|
|
Weight
|
≤105g
|
Electrical Parameters
|
Parameter
|
Condition
|
Minimum Value
|
Typical Value
|
Maximum Value
|
|
Supply voltage
|
Standard
|
9
|
12
|
24
|
36
|
|
Operating current
|
|
|
12
|
|
|
Output load
|
Resistive
|
10
|
|
|
|
Capacitive
|
|
|
20
|
|
Operating temperature
|
|
-40
|
|
85
|
|
Storage temperature
|
|
-40
|
|
85
|
Interface Definition
PCB board wiring definition
|
PCB pin/wire color
|
Pin Definition
|
Description
|
|
Red
|
DC9~36V
|
Power supply positive terminal
|
|
Black
|
GND
|
Power supply negative terminal
|
|
Yellow
|
Out X
|
X-axis output current
|
|
Green
|
Out Y
|
Y-axis output current
|
Enclosure Wiring Definition
|
Housing package pins/wire colors
|
Pin Definition
|
Description
|
|
PIN1/Red
|
DC9~36V
|
Power supply positive terminal
|
|
PIN2/Yellow
|
Out X
|
X-axis output current
|
|
PIN3/Green
|
Out Y
|
Y-axis output current
|
|
PIN4/Black
|
GND
|
Power supply negative terminal
|
|
PIN5/--
|
NC
|
No connection
|

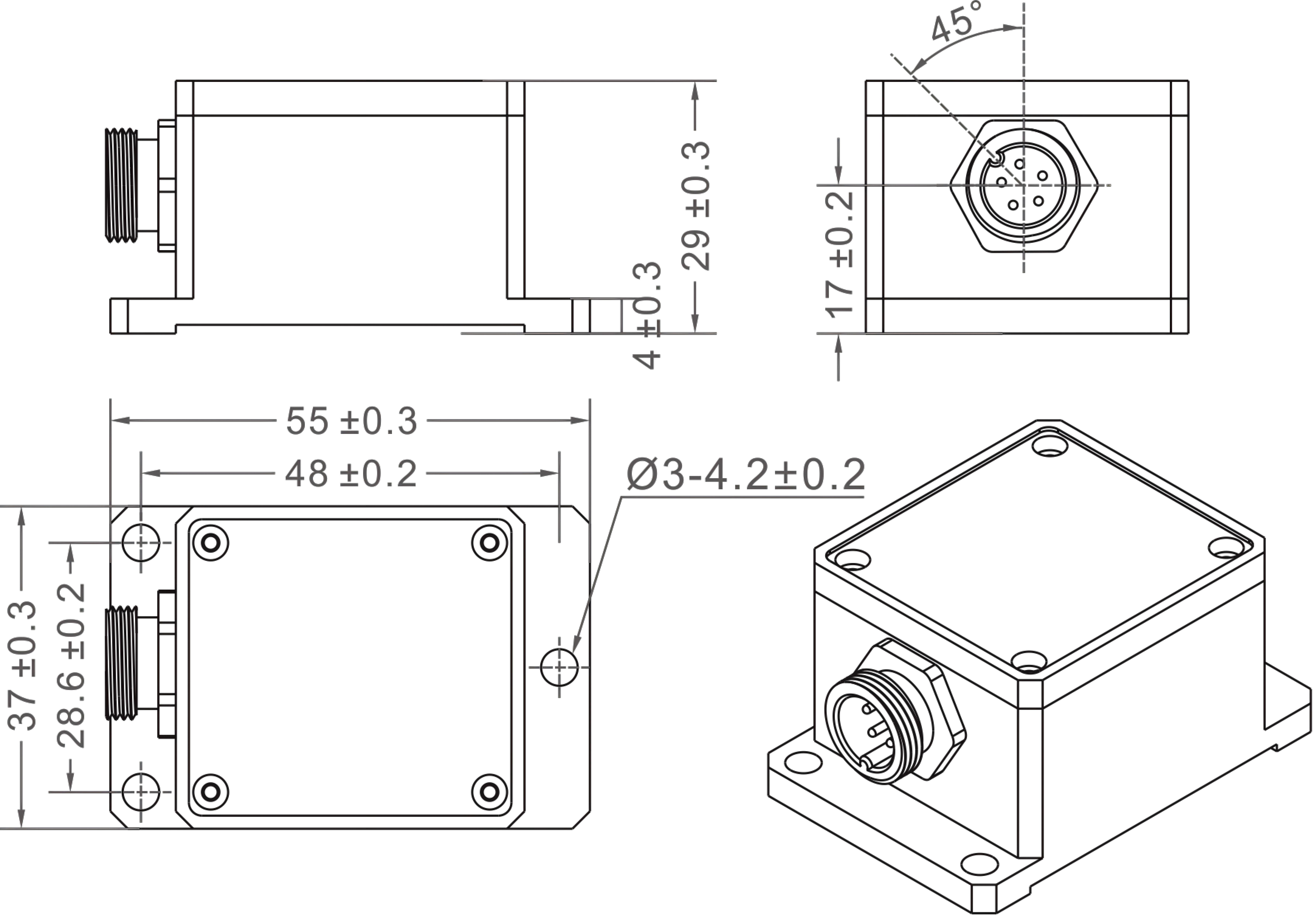

Product Dimensions
PCBA Board Dimensions
PCBA board dimensions: L33×W27×H8.2mm
Recommended screws: 4 M3 screws
Housing package size
Case dimensions: L64.5×W50×H18.5mm
Recommended screws: 2 M4 screws
