The DTS6-V1 is a voltage-output dynamic tilt sensor that simultaneously outputs dynamic attitude angles (roll and pitch) across two axes. Users can easily calculate the current object's attitude angle by acquiring the voltage signal (0-5V DC) output by the sensor.
The product integrates a three-axis accelerometer and a three-axis gyroscope using MEMS technology. By sensing changes in the gravitational field component and gyroscope angular rate, combined with an internal six-axis Kalman filter algorithm, it calculates the dynamic attitude angle in real time and outputs it as an analog voltage. This sensor is primarily used to measure the roll and pitch angles of moving or stationary objects.
The product employs a non-contact measurement principle, enabling continuous real-time tilt angle data output. Installation is simple, requiring no strict alignment or reliance on a specific mounting reference surface. The sensing element is manufactured using MEMS technology, offering excellent measurement accuracy, a compact size, strong electromagnetic interference resistance, and shock and vibration resistance, making it suitable for common applications such as industrial equipment and platform attitude measurement.
Technical Characteristics
❖ Measuring range ±1°~±90° selectable;
❖ Dynamic accuracy ±0.3°;
❖ Static accuracy ±0.05°;
❖ Output mode 0~5V.
Application Field
Typical applications for this product series include: cranes and construction machinery, agricultural machinery, mobile elevators and fire trucks, automated guided vehicles (AGV), automated assembly machinery, boring and drilling applications.
Performance Parameters
|
DTS6-V1
|
Condition
|
Parameters
|
Unit
|
|
Range
|
|
±10
|
±30
|
±60
|
±90
|
±180
|
°
|
|
Measurement Axis
|
|
X/XY
|
X/XY
|
X/XY
|
X/XY
|
X
|
Axis
|
|
Zero Output
|
0° output
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
V
|
|
Resolution
|
|
0.01
|
0.01
|
0.02
|
0.03
|
0.05
|
°
|
|
Dynamic Accuracy
|
@25℃
|
0.3
|
0.3
|
0.3
|
0.5
|
0.5
|
°
|
|
Static Accuracy
|
@25℃
|
0.05
|
0.05
|
0.06
|
0.08
|
0.1
|
°
|
|
Long-Term Stability
|
|
0.05
|
0.05
|
0.05
|
0.05
|
0.05
|
°
|
|
Zero Temp. Coefficient
|
-40~85℃
|
±0.006
|
±0.006
|
±0.006
|
±0.006
|
±0.006
|
°/℃
|
|
Sensitivity Temp. Coefficient
|
-40~85℃
|
≤100
|
≤100
|
≤100
|
≤100
|
≤100
|
ppm/℃
|
|
Power-On Startup Time
|
|
1
|
1
|
1
|
1
|
1
|
S
|
|
Response Time
|
|
0.01
|
0.01
|
0.01
|
0.01
|
0.01
|
s
|
|
Response Frequency
|
|
20~100
|
20~100
|
20~100
|
20~100
|
20~100
|
Hz
|
|
Electromagnetic Compatibility
|
Compliant with EN61000 and GBT17626
|
|
Insulation Resistance
|
≥100 megohms
|
|
Shock Resistance
|
100g@11ms, triaxial (half-sine wave)
|
|
Vibration Resistance
|
10grms / 10~1000Hz
|
|
Waterproof Rating
|
IP67
|
|
Cable
|
Standard 2-meter shielded cable
|
|
Weight
|
≤180g(excluding cable)
|
|
Resolution: The smallest change in the measured quantity that the sensor can detect and distinguish within its measurement range.
Measurement Accuracy: The combined error of the sensor under normal temperature conditions, including linearity, repeatability, hysteresis, zero-point deviation, and horizontal axis error.
Long-term Stability: The deviation between the maximum and minimum values of the sensor after one year of long-term operation under normal temperature conditions.
Response Time: The time required for the sensor output to reach the standard value after a single angular change.
|
|
|
|
Electrical Parameters
|
Parameters
|
Condition
|
Min
|
Typ
|
Max
|
Unit
|
|
Supply voltage
|
Standard
|
9
|
12,24
|
36
|
V
|
|
Optional
|
|
5
|
|
V
|
|
Operating current
|
|
|
30
|
|
mA
|
|
Output load
|
Resistive
|
10
|
|
|
kΩ
|
|
Capacitive
|
|
|
20
|
nF
|
|
Operating Temp
|
|
-40
|
|
85
|
℃
|
|
Storage Temp
|
|
-40
|
|
85
|
℃
|

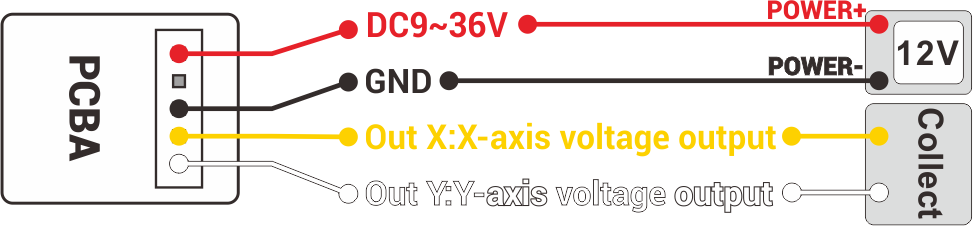

Interface Definition
|
Shell line color
|
PCBA line color
|
Definition
|
Description
|
|
Red
|
Red
|
DC9~36V
|
Power supply positive terminal
|
|
White
|
Yellow
|
X_OUT
|
X-axis voltage output
|
|
Green
|
White
|
Y_OUT
|
Y-axis voltage output
|
|
Black
|
Black
|
GND
|
Power supply negative terminal
|
Product Dimensions
PCBA Size
Case dimensions: L46×W35.5×H12.5mm
Recommended screws: 4 M3 screws
Shell Size
Case dimensions: L77.9×W42×H23mm
Recommended screws: 3 M4 screws
