The GKC370 vibration sensor is based on the principle of single crystal silicon MEMS capacitive sensing, providing analog voltage output signals with an output range of 0.5 V to 4.5 V. Its built-in compensation circuit can effectively reduce the impact of temperature and process deviations on measurement accuracy, thereby achieving good linearity and long-term stability.
This product has the following technical features:
-Integrated electromagnetic compatibility (EMC) and radio frequency interference (RFI) shielding design;
-Low power operation mode;
-Support multi range configuration of ± 2g, ± 4g, ± 8g, ± 16g (optional);
-DC coupling output interface;
-Frequency response range: 0 Hz to 200 Hz;
-Built in self checking function, supporting real-time monitoring of operating status.
Based on the above performance indicators, GKC370 is suitable for industrial vibration measurement, equipment status monitoring, and general motion detection applications.
Technical Characteristics
❖ Triaxial MEMS Vibration sensor;
❖ 0.5-4.5V output;
❖ Measurement range ±2g~±16g;
❖ Self-test function;
❖ IP67 protection rating.
Application Field
❖ Bridge impact monitoring ❖ Machine control
❖ Structural monitoring ❖ Low-frequency vibration monitoring
Performance Parameters
|
GKC370
|
Parameter
|
|
Measurement Range
|
±2g~±16g
|
|
Measuring Axis
|
X,Y,Z Axis
|
|
Resolution
|
<1mg
|
|
Zero-Point Acceleration
|
2.5V (Voltage Output)
|
|
Full-Range Output
|
0.5-45V (Voltage Output)
|
|
Linearity
|
1%
|
|
Power-On/Power-Off Repeatability
|
<2mg
|
|
Response Frequency
|
0 - 200Hz Integrated low-pass filter
|
|
Bandwidth
|
200Hz @ 3Db
|
|
Shock
|
>100g@11ms (half sine wave)
|
|
Shock Recovery Time
|
<1 ms
|
|
Operating Temperature Range
|
-40~+85℃
|
|
Storage Temperature Range
|
-40~+85℃
|
|
Supply Voltage
|
9-36V DC
|
|
Maximum Power Consumption
|
35-38mA @12V DC
|
|
Noise Density
|
<25µg/√ Hz @ ±2g
|
<60µg/√ Hz @ ±16g
|
|
Maximum Calibration Uncertainty
|
<1mg
|
|
Electrical Protection
|
EMC and RFI shielding
|
|
Reliability
|
MIL-HDBK-217 Level 2
|
|
Self-Test
|
±1g @ 10Hz ST line grounding
|
|
Protection Class
|
IP67
|
|
Product Dimensions
|
L55×W37×H29mm
|
|
Product Weight
|
≤100g(excluding cable)
|

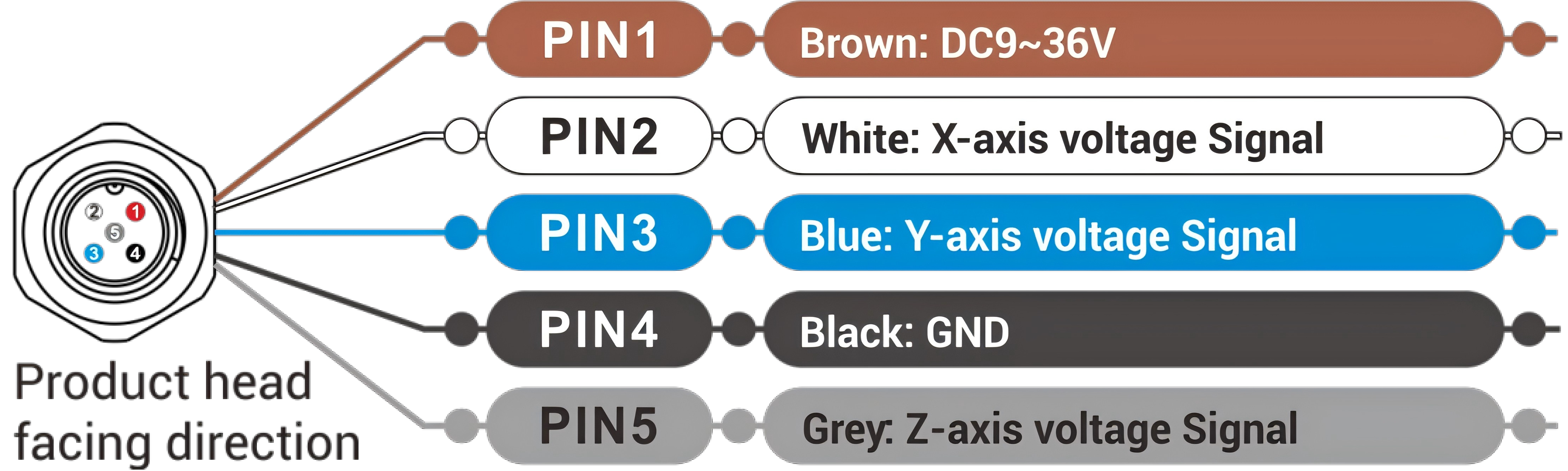

PIN Definition
|
PIN/Thread Color
|
Definition
|
|
PIN1/Brown
|
DC9 ~36V
|
|
PIN2/White
|
X-axis voltage signal
|
|
PIN3/Blue
|
Y-axis voltage signal
|
|
PIN4/Black
|
GND
|
|
PIN 5/Grey
|
Z-axis voltage signal
|
Product Dimensions
Shell size: L55×W37×H29mm
Installation size: L48×W28.6×H4mm
Mounting screws: 3 M4 screws
Shell material: aluminum alloy
