The HTS6 series high-performance single/dual-axis tilt sensors, while maintaining stable and reliable characteristics, further improve measurement accuracy and optimize temperature drift performance. This product integrates a high-precision 16-bit differential A/D converter, combined with a 5th-order digital filtering algorithm, to accurately measure the roll and pitch angles of the sensor relative to the horizontal plane.
Multi-protocol digital output: Supports RS485, RS232, RS422, and TTL interfaces to adapt to different industrial communication needs.
Intelligent temperature drift compensation: Built-in high-precision digital temperature sensor, real-time correction of temperature drift error (optional temperature output), ensuring excellent repeatability in a wide temperature range.
Industrial-grade reliability: Utilizing a reinforced design, this product is suitable for harsh industrial environments due to its excellent expandability and environmental adaptability, possessing superior anti-interference capabilities and long-term stability.
Technical Characteristics
❖ Measuring range ±1~±90° selectable;
❖ Small measuring range accuracy 0.005°;
❖ Resolution 0.001°;
❖ DC 9~36V wide voltage input;
❖ RS485, RS232, RS422, and TTL output interfaces selectable.
Application Field
❖ Industrial automation ❖ Engineering machinery platform leveling systems
❖ Hotovoltaic tracking bracket control systems ❖ Aerospace attitude reference systems
❖ Precision instrument leveling devices ❖ High-precision tilt measurement fields such as platform leveling.
Performance Parameters
|
HTS6
|
Condition
|
Parameter
|
|
Measurement Range
|
-
|
±10°
|
±30°
|
±60°
|
±90°
|
|
Measurement Axis
|
-
|
Single-axis / Dual-axis
|
|
Resolution1)
|
-
|
0.001°
|
|
Measurement Accuracy2)
|
@25℃
|
0.005°
|
0.01°
|
0.01°
|
0.02°
|
|
Long-Term Stability
|
|
0.01°
|
0.02°
|
0.05°
|
0.08°
|
|
Zero-Point Temp Coefficient3)
|
-40~85℃
|
0.0005°/℃
|
|
Sensitivity Temp Coefficient4)
|
-40~85℃
|
≤50ppm/℃
|
≤50ppm/℃
|
≤50ppm/℃
|
≤100ppm/℃
|
|
Power-On Startup Time
|
0.5S
|
|
Response Frequency
|
20Hz
|
|
Output Rate
|
5Hz / 15Hz / 35Hz / 50Hz/ 100Hz optional
|
|
Output Signal
|
RS232 / RS485 / RS422 / TTL / MODBUS
|
|
EMC
|
According to EN61000 and GBT17626
|
|
Insulation Resistance
|
≥100 MΩ
|
|
Shock Resistance
|
100g@11ms, 3 Axial Direction (Half Sinusoid)
|
|
Vibration Resistance
|
10grms/10~1000Hz
|
|
Protection Class
|
IP67
|
|
Cables
|
Standard 2m cable, wire diameter 6.0~6.5mm, wire weight ＜ 155g
|
|
Weight
|
≤200g (excluding cable)
|
|
*The maximum range for a single axis is ±90°, and the maximum range for a dual axis is ±89.5°.
|
|
1) Resolution: The smallest angular change that can be detected within the effective measurement range, reflecting its ability to monitor minute tilt fluctuations.
2) Measurement Accuracy: A comprehensive evaluation of the sensor's performance indicators under standard ambient temperature, including the overall performance of linearity error, repeatability error, hysteresis error, zero-point offset error, and cross-axis sensitivity error.
3) Zero-Point Temperature Coefficient: The ratio of the sensor's output value to temperature when the sensor is in a zero-input state, defined as the ratio of the zero-point offset within the rated operating temperature range to the room temperature reference value.
4) Sensitivity Temperature Coefficient: A stability index of the sensor's full-scale output value with temperature changes, characterizing the drift rate of sensitivity relative to the room temperature reference value within the rated temperature range.
|
Electrical Parameters
|
Parameter
|
Condition
|
Minimum Value
|
Typical Value
|
Maximum Value
|
Unit
|
|
Power Supply voltage
|
Standard
|
9
|
12
|
24
|
36
|
V
|
|
Customized
|
|
Other voltages
|
|
|
|
Operating current
|
No load
|
|
50
|
|
mA
|
|
Operating temp
|
|
-40
|
|
85
|
℃
|
|
Storage temp
|
|
-40
|
|
85
|
℃
|
Interface Definition

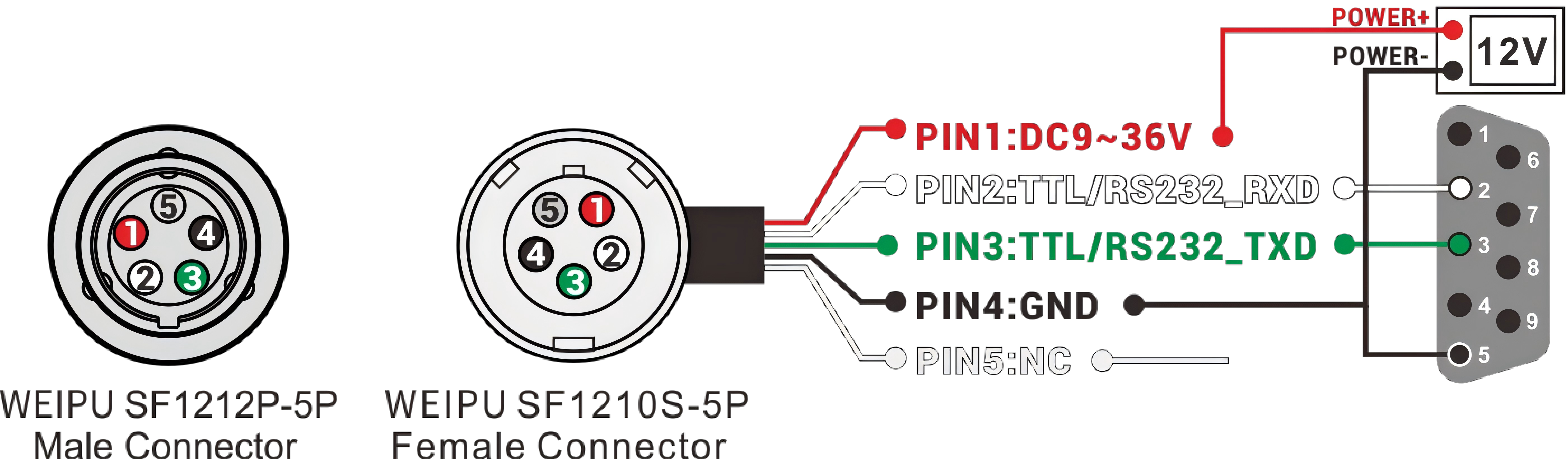

TTL/RS232/RS485 Pin definition
|
PIN/Thread Color
|
Definition
|
Description
|
|
PIN1 / Red
|
DC9~36V
|
Positive power supply
|
|
PIN2 / White
|
TTL/RS232_RXD / RS485_D+
|
Receive data
|
|
PIN3 / Green
|
TTL/RS232_TXD / RS485_D-
|
Transmit data
|
|
PIN4 / Black
|
GND
|
Negative power supply
|
|
PIN5 / - -
|
NC
|
No connection
|
|
PIN6 / - -
|
NC
|
No connection
|
|
PIN7 / - -
|
NC
|
No connection
|
RS422 PIN Definition
|
PIN/Thread Color
|
Definition
|
Description
|
|
PIN1 / Red
|
DC9~36V
|
Power supply positive terminal
|
|
PIN2 / Black
|
GND
|
Power supply negative terminal
|
|
PIN3 / Orange
|
RS422_RXD+
|
Receiver's positive signal line
|
|
PIN4 / Yellow
|
RS422_RXD-
|
Receiver's negative signal line
|
|
PIN5 / Blue
|
RS422_TXD+
|
Transmitter's positive signal line
|
|
PIN6 / White
|
RS422_TXD-
|
Transmitter's negative signal line
|
|
PIN7 / - -
|
NC
|
No connection
|
Product Dimensions
Case dimensions: L90×W59.1×H34mm
Recommended screws: 3 M4 screws
